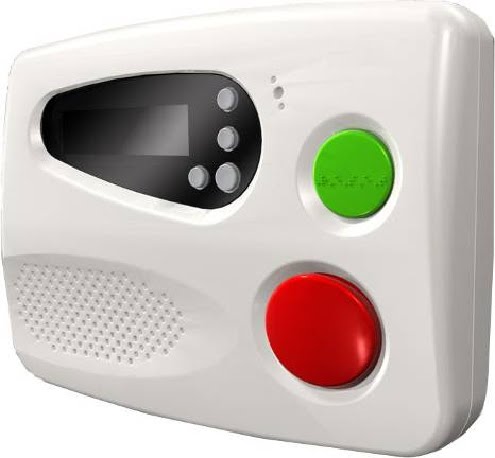

PSTN Medical Alarm CTC-1068RV/ CTC-1068RV Pro

Features:

• In compliance with UL1635, UL1637 and UL 985

• Half duplex (Push to Talk & Listen In) & Full duplex (Two Way Conversation) speech path controlled by DTMF telephone or receiver consoles using DTMF commands

• Integral ringer for hard-of-hearing users

• Full 24 hour battery backup as per UL 985

• Local & remote time setting/adjustment

• Communication Protocols: Contact ID, Scancom Social Alarm Format (SAF), and Tunstall Telecom Format

• Programmable remotely via Programmer CTC-835 (sold separately)

• Reporting to a total of 4 programmed telephone numbers, and each number can have a separate account numbers up to 6 digits long

• Up to 4 telephone numbers can be stored for non-emergency calls; user can use the up & down arrow keys on the control panel to speed dial

• Voice Prompt: playing customized voice prompts in certain events

• Voice Reminder

• System Fault Reporting

• “Help Arrived” confirmation feature

• Mobility check and Automatic Check-in Report

• A maximum of 10 accessory devices can be added in one system: Waterproof Wrist Emergency Transmitter, Waterproof Emergency Pendant, Passive Infrared Detector, Fixed Panic Button & Smoke Detector ( for 1068RV Pro only)

• Complimentary Windows-based software “Pilot-1068” is provided, which allows you to program and edit the settings efficiently from a computer.

• Compatible with Talking Pendant WTRV/ WTRVS

• Voice Reporting: calling out to users’ landline or mobile phone (a voice message with the capacity of 8 secs can be recorded)

Specifications:

• Power: 12V 500mA adaptor

• Back up battery: 7.2V 600mAh Ni-Mh rechargeable battery x 6

• Battery back up time: 18 hours minimum

• Speaker: 3W

• Radio frequency available: 433 MHz / 868.35 MHz / 868.6375 MHz / 869.2375 MHz

(other frequency available upon request)

• Radio frequency range: 433 MHz or 868.35MHz: Over 200 meters in open space 868.6375MHz or 869.2375 MHz: Over 300 meters in open space

• Operating temperature: -10° to +45°C

• Humidity: up to 90% non-condensing

• Dimensions: 178 X 120 X 32 mm
